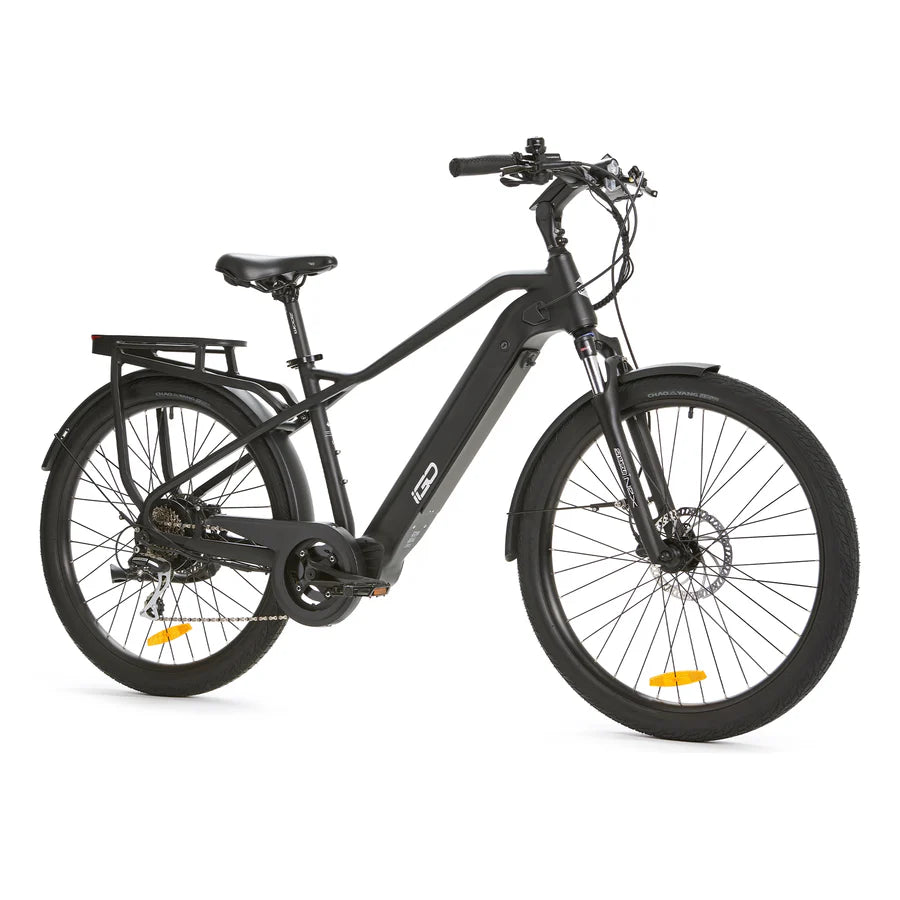

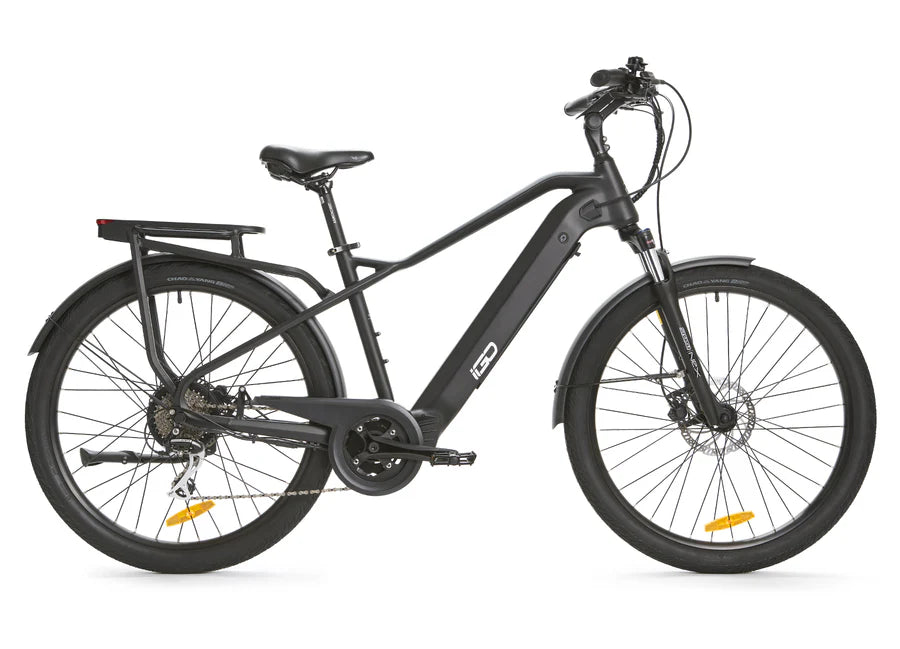

Dillenger iGo
Dillenger iGo
Couldn't load pickup availability
Now in stock!
Say goodbye to the daily grind and hello to the freedom and convenience of the Dillenger iGo.
Whether you're running errands, going for a leisurely weekend ride, or simply looking for a cost-effective and eco-friendly way to get around, the Dillenger iGo has got you covered. It's optimized for an urban landscape giving you the ability to accomplish more, cover more distance and help you lead a more active lifestyle.

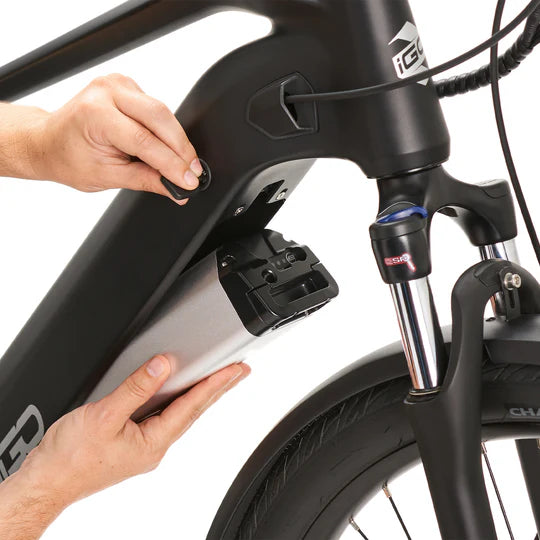

720WH REMOVABLE BATTERY
Commuting to work, running errands, or exploring the city, you'll have the power you need to keep going. With a 720Wh capacity, you'll experience less "range anxiety" and more freedom to roam. The integrated design ensures better security from theft, while also providing optimized weight distribution for a more stable and smoother ride. With less frequent charging required, you'll have more time to focus on the ride and less time tethered to a power outlet.

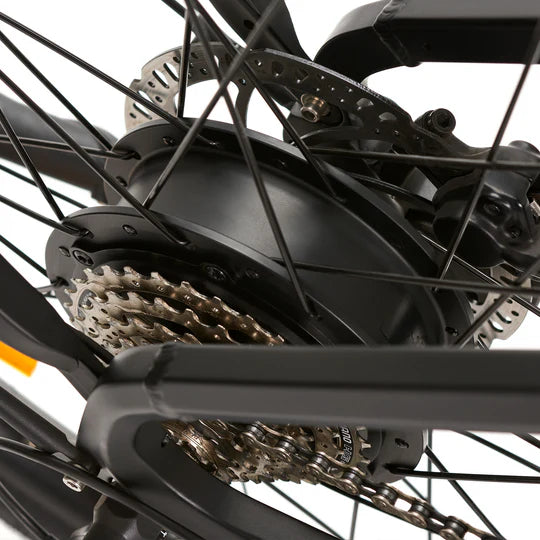

IGO Geared MOTOR
The Geared Motor is perfect for the urban rider who demands power and versatility. This powerful motor packs a punch with 48V and 500W of power, delivering up to 55Nm of torque for responsive acceleration and on-demand throttle for those extra boosts when you need it. The power assisted pedalling feature takes your ride to the next level, making hills a breeze and providing a smooth, effortless ride every time.
Full Specifications:
| GENERAL | |
| Assembly Required | Handlebars aligned, pedals and front mudguard |
| Main Use | Commuting, Leisure |
| Nominal Power | 500W |
| Cruise Speed | 25km/h under power |
| Max Weight | 120kg |
| Max Range | 110km (69mi) * |
| Throttle Type | Thumb throttle (removable) |
| Pedal Assist Levels | 5 |
| Grips | VELO, Ergonomic, 135mm |
| Handlebar Display | PAS Control |
| Headset | Toolless adjustable threadless with 0 to 90 degree rise |
| Stem | Promax adjustable |
| Saddle | SELLE ROYAL Rio |
| Front Fork | RST VOLANT, 80mm travel, lockout with quick release |
| Tyres | CHAOYANG 27.5”x2.4” |
| Frame Material | Aluminium |
| BATTERY | |
| Battery Chemistry | Lithium Ion |
| Nominal Battery Voltage | 48V |
| Battery Capacity | 15Ah |
| Nominal Battery Energy | 720wH |
| Battery Removable | Yes |
| Battery Cell Type | 18650 |
| Cell Spec | Samsung 5000mAh |
| Built in BMS | Yes |
| Battery Charge Time | 5 hours from empty |
| BRAKES | |
| Brake Type | TEKTRO HDE350 Hydraulic Disc |
| Brake Levers | TEKTRO HDE350 with power cut off switch |
| Brake Rotors | TEKTRO 180mm |
| TRANSMISSION | |
| Transmission Brand | SHIMANO |
| Transmission Type | 8 speed |
| Deraileur | SHIMANO ACERA 8-speed |
| MOTOR | |
| Motor Brand | Dillenger |
| Motor Model | Igo |
| Motor Voltage | 48V |
| Drive Type | Gear hub motor |
| WEIGHT | |
| Total Weight - No Battery | 25.7kg |
| Battery Weight | 3.5kg |
| Total Weight | 29.2kg |
| DIMENSIONS | |
| Suggested Max. Rider Height | 190cm (6'2") |
| Suggested Min. Rider Height | 157cm (5'2") |
| Saddle Height (Min/Max) | 79cm / 99cm (31.1" / 39") |
| Frame Size | Universal |
| Wheel Base | 1156mm |
| Wheel Size | 27.5" / 650B |
ACCESSORIES INCLUDED:
Front LED light XC-259A (powered by main battery), Rear LED SPANNINGA LED Commuter Glow XE with brake light Integrated into rear rack (powered by main battery), Front & Rear Fenders, Rear Cargo Rack Accessory ready, Integrated Chainring Guard, Water Bottle Bosses on Seat Tube, Kickstand, Wellgo Pedals, Bell, Tool Kit, Battery Charger.
