Dillenger Electric Bikes
Opia
Opia
Couldn't load pickup availability
In stock and ready to ship.

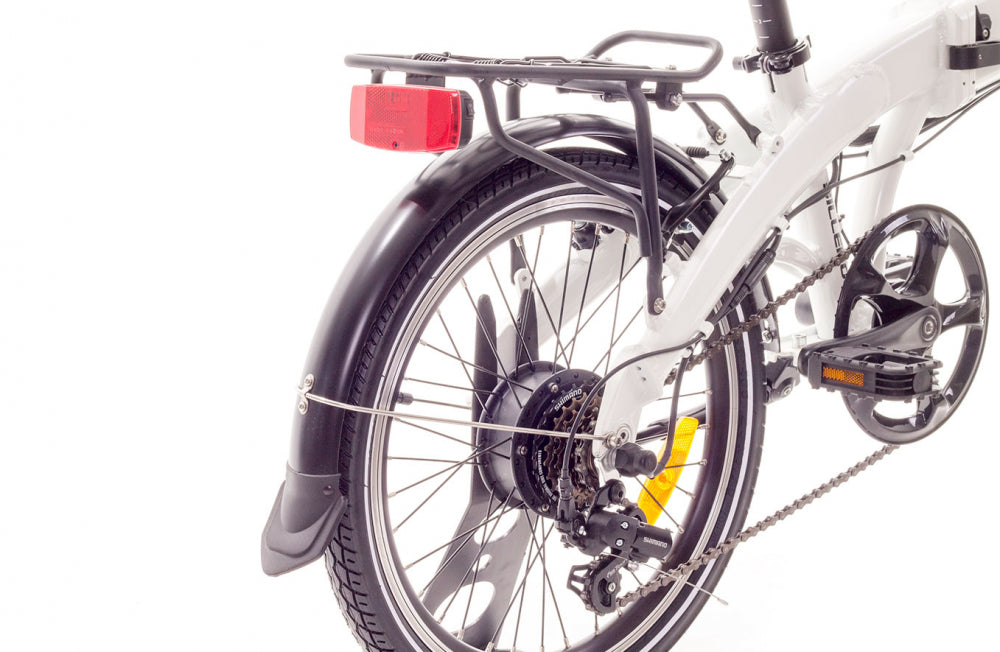

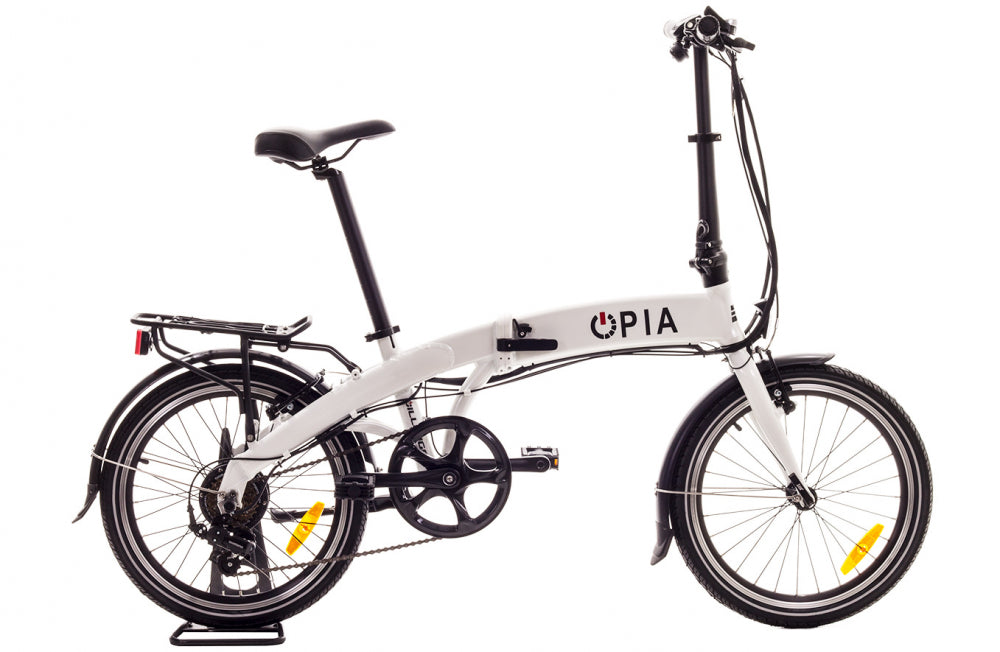

The LG powered Dillenger Opia is now in its second design iteration. Improvements include a new safety lock design for front handlebar folding, front and rear mudguards, integrated rear rack with light and all terrain tires to suit any riding conditions. For commuters who want to get to work in a hurry and also need to handle the bike whilst folded away, this is the top of the line in lightweight folding electric bikes. Thanks to advances in battery-integrated frame design, the Opia weighs in at a mere 18kg which is around 6kg lighter than the competition. At such a light weight, you can fold this e-bike down into a manageable size and carry it without breaking your back. In terms of practicality, this is a significant leap forward. The boundary to adopting electric bikes from as recent as last year has been the problem of weight. For those looking for one of the lightest electric bikes on the market backed by an excellent warranty, the Dillenger Opia is a great choice.
Lightweight without compromise
The Opia is one of the lightest electric bikes in the world. Thankfully this hasn't resulted in any compromise. The 36V Lithium-ion battery contains 280Wh of energy which, combined with the very efficient road tyres, will deliver an impressive range of up to 60km on medium level pedal assist. The power is also without compromise. The 250W high torque geared motor hub is borrowed from our most popular conversion kit (Samsung Street) and delivers an astonishingly large amount of torque which feels impressive on such a lightweight electric bike.
Industry-leading warranty and support
The Opia is backed by one of the best warranties in the industry, from a company that has been around for a long time. 10 year frame warranty, 1-year full warranty on motor, display and controller and 1-year full warranty on the Lithium-ion battery and charger (not pro rata, like some other brands). This is one of the most comprehensive warranties available for an e-bike. When you ride your bike every day, you want to know that should something unexpected occur, you're well and truly covered.
Stealthy electronics
If you're worried about your coworkers giving you a hard time about 'taking the easy route' by going electric, they will probably have a hard time believing that your new bike is electric assisted. With the frame-integrated battery completely concealed, no visible charge ports, rear hub motor hidden in the back wheel, the Opia is disguising itself as a normal bicycle to the untrained eye! There is also a practical purpose to the clever concealment. The electronics are protected inside the frame and rubber seals and grommets protect the important parts against the most inconvenient deluge.
Materials and components

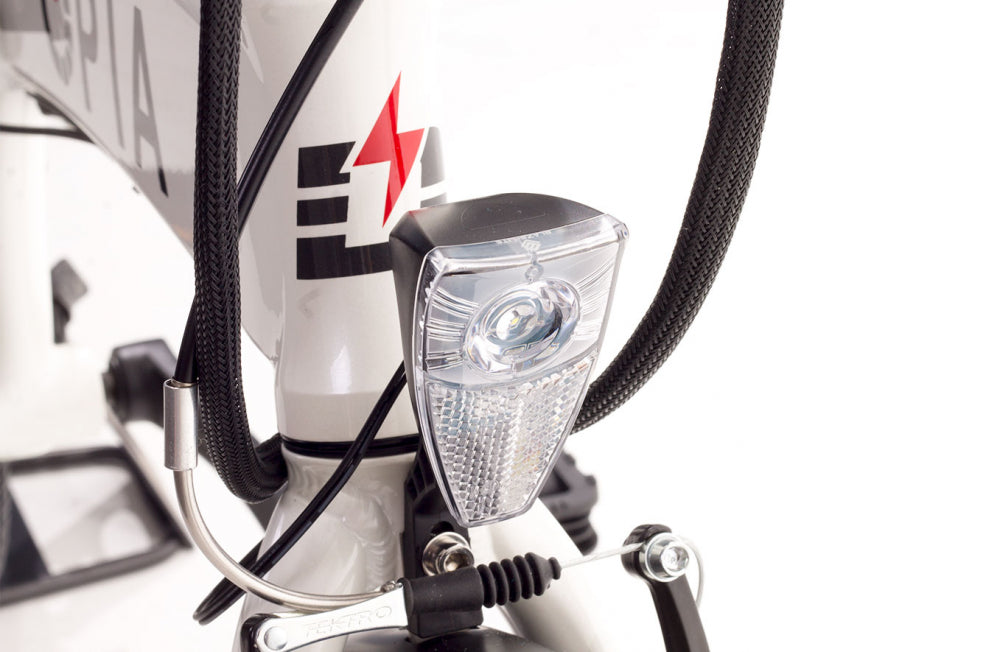

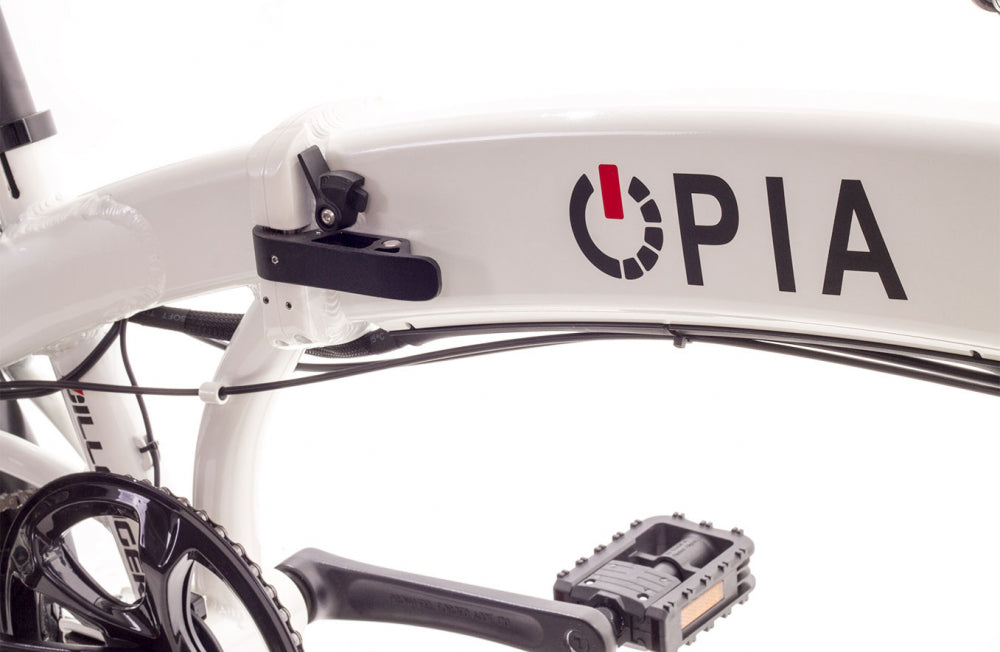

The Dillenger Opia is assembled with quality components that will last. The frame is made from a high strength aluminium alloy which is covered by a 10 year warranty. The motor, controller, LG battery cells, display, wiring harness and charger are all borrowed from our bank of highly reliably e-bike components that feature on most of our products. The handlebar and frame folding joints feature redundant safety latches, in the event that one of these is bumped in transit, the rider will remain safely in control of the bike. This electric bike also features folding pedals, front light, reflectors, adjustable pedal-assist power, adjustable handlebars and seat height, Tektro brakes, and a USB outlet to charge your phone whilst riding.
Full Specifications
GENERAL |
|
Designation |
EN15194:2009 |
Assembly Required |
Minimal assemble required |
Main Use |
Commuting |
Nominal Power |
Max 250W continuous |
Max Speed |
25km/h with motor assistance |
Max Weight |
120kg |
Max Range |
70km |
Average Range |
50km |
Throttle Type |
Thumb throttle (removable, check legality with local authorities) |

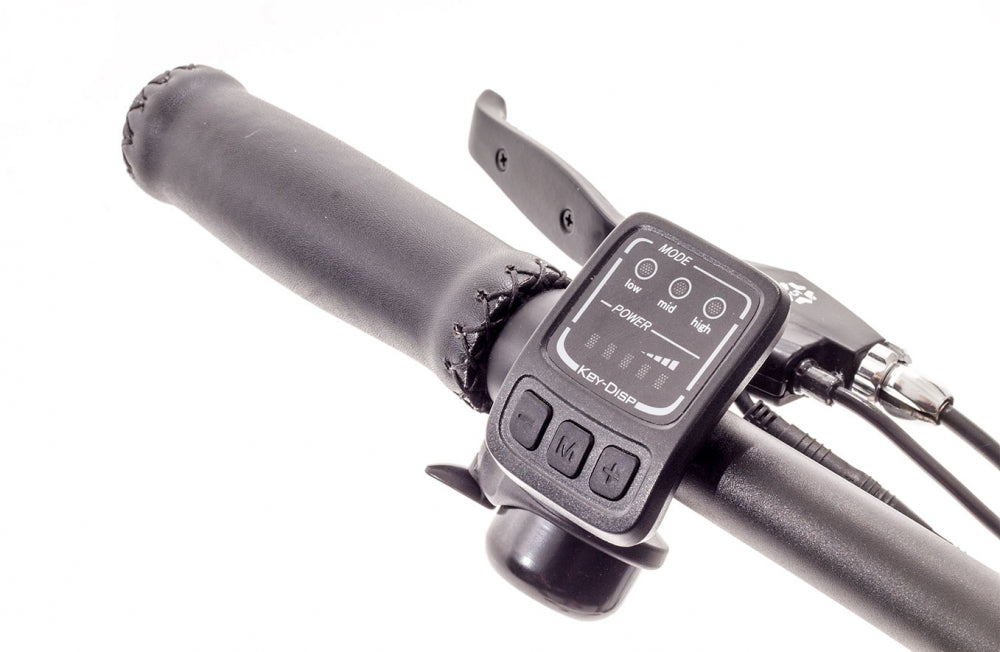

Pedal Assist Levels |
Low, medium and high power |
Grips |
Lock grips |
Pedals |
Folding pedals |
Crankset |
3 piece 52 tooth chainwheel crankset |
Tyres |
20" x 1.75" multi use |
Wiring type |
Internal |
Lights |
Front and rear |
Frame Material |
Aluminium Alloy |
BATTERY |
|
Battery Chemistry |
LiMn2O4 Lithium Ion |
Nominal Battery Voltage |
36V |
Charged Battery Voltage |
42V |
Nominal Battery Energy |
280Wh |
Battery Removable |
Yes |
Battery Cell Type |
18650 |
Cell Spec |
LG M26 3C Max discharge |
Cell Configuration |
10S 3P |
Built in BMS |
Yes |
Other Features |
Lockable, removable, USB charging |
Battery Charger Type |
2A SANS |
Battery Charge Time |
4 hours from zero charge |
BRAKES |
|
Brake Type |
Tektro V brakes |
TRANSMISSION |
|
Transmission Brand |
Shimano |
Transmission Type |
Derailleur |
Shifters |
Shimano |
Deraileur |
Shimano Tourney |
MOTOR |
|
Motor Brand |
Dillenger OEM |
Motor Model |
250W geared |
Motor Voltage |
36V |
Max Motor Power |
450W |
Drive Type |
Geared |
Motor Sensors |
Hall sensor, speed sensor |
CONTROLLER |
|
Controller Brand |
Dillenger OEM |
WEIGHT |
|
Total Weight - No Battery |
16.4kg |
Battery Weight |
1.8kg |
Total Weight |
18.2kg |
DIMENSIONS |
|
Length |
154cm |
Width |
61cm |
Height |
102cm |
Frame Size |
112cm |
Wheel Base |
106cm |
Wheel Size |
20" |
Ground to Max Seat Height |
98cm |
Ground to Lowest Seat Height |
65cm |

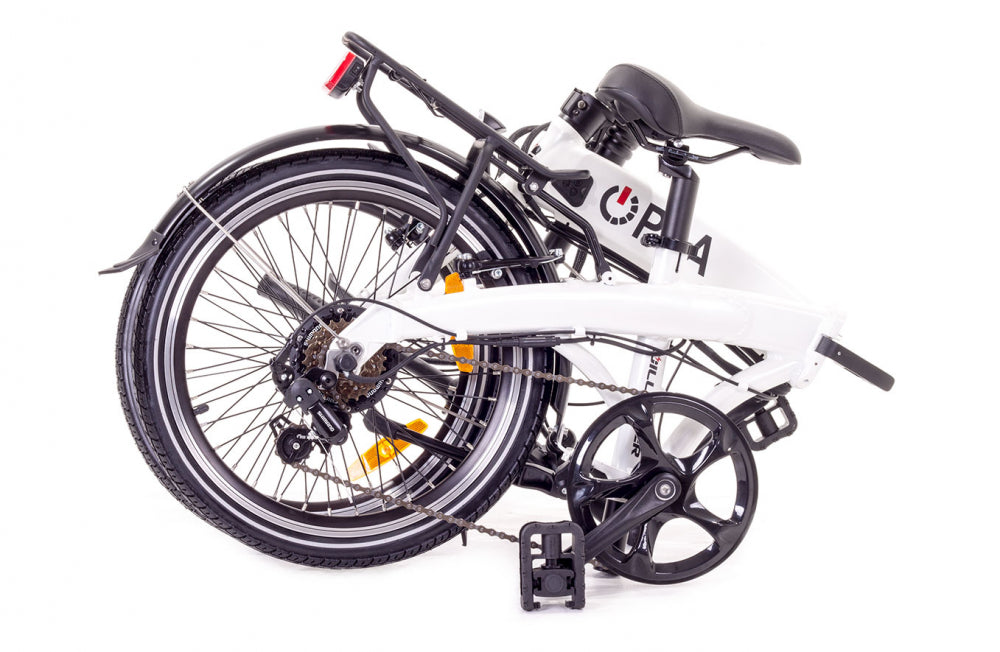

FOLDED |
|
Folded Length |
88cm (approx.) |
Folded Width |
45cm (approx.) |
Folded Height |
62cm (approx.) |
